矩形頂管機

發布時間：2018-04-11

DJ系列矩形頂管掘進機，采用土壓平衡方式，能夠適應絕大部分矩形頂管施工地質需求。分別采取主刀盤配輔助刀盤及多刀盤兩種結構形式。能夠更好地根據需要有選擇地進行設備選型。設備動力冗余大，脫困能力強，采用進口的測量元件，高精度的進行4軸監控。隨時掌控設備運行狀況。集成化的糾偏系統配合刀盤轉向，更好的為施工提供設備支持。

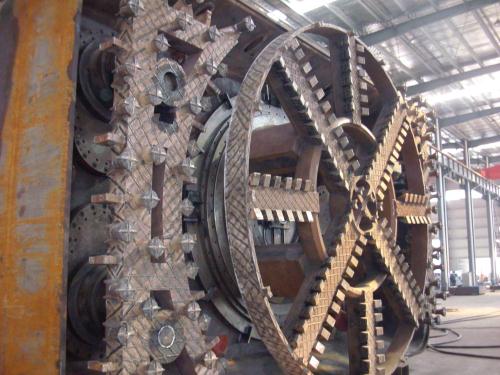

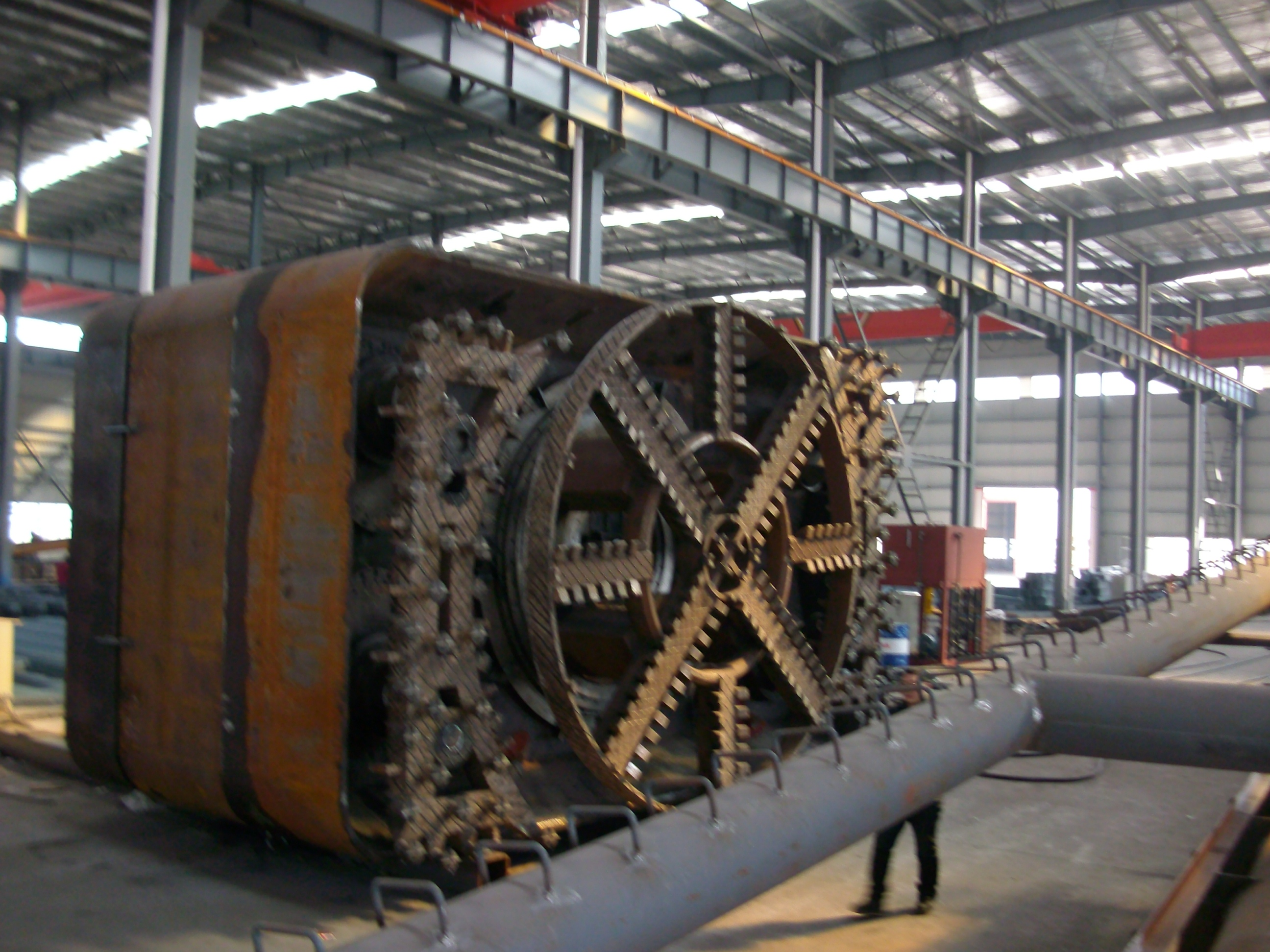

DJ series Rectangular Pipe Jacking Machine adopts the EPB method, which can meet the geological requirements of most rectangular pipe jacking construction.Two types of structure are used, one is the main cutter plate with auxiliary cutter plate and the other is multi-cutter plate.

The equipment has large power redundancy and strong ability to get out of trouble.With imported measuring element to monitor 4-axis high precision control. The integrated steering system can be combined with the turning of cutter disk to provide better equipment support for construction

技術性能與特點：Technical Performance Characteristics

1.能夠適應長距離頂進

Adapts to long distance jacking.

2.糾偏時，糾偏油缸和刀盤聯動，在糾偏油缸提供軸向單側力矩的同時刀盤提供旋轉力矩。更好的進行糾偏工作

Uponsteering, the rectifying oil cylinder makemovement consistently with the cutter. The rotary torque of the cutter is provided when the axial one-side torque is provided by the rectifying oil cylinder.

3.全進口的測量系統，提供除常規XY軸以外的測量，總計4軸監測。在任何方向變化的初始階段，即可檢測并糾偏，防患于未然

High-end imported measuring system, which provides measurement on not only conventional XY axis but also total 4 axis monitoring in any direction changes in the initial stage. Can predict deviation path and conduct problem solving.

4.多個單盤既可聯動施工，亦可獨立運行

Multiple single plates can be operated jointly or separately

5.設計了防轉裝置

Anti-rotation device is designed

6.刀盤轉速變頻可調

Variable frequency of blade speed can be adjuste

7.刀盤驅動系統采用進口減速機，動力強勁，性能可靠

Imported retarder in the cutter drive system enabling with strong power and reliable performance.
